当前位置:首页>>Products产品>>LED light 信号灯>>Φ300 Countdown core module倒计时灯芯

Φ300 Countdown core module倒计时灯芯
Products description产品描述:
SLZ-CM-CD300 series, countdown timer core module of traffic light, has three models. One is single color, either RED or GREEN. Another is two-color, Red combined with Green together. It’s generic design, belong to economic style. But you could select differ items you want, it’s our pleasure to follow your customized design. In stock modules designed to requirements of replacement (spares) for maintenance purpose and OEM factories assembling, satisfied National standard GB/14887-2003, metrological verification (CMA) as well. It’s widely used in the world
SLZ-CM-CD300系列的信号倒计时器灯芯,目前有了3种产品销售,一种是单色的,要么红色、要么绿色。另外的一种就是双色的,也就是红色与绿色组合到一起。这些都是不带透镜的配置;不带透镜的配置属于经济型方案。但是,我们很乐意由客户自己选择所需要的不同配置,也遵循客户的定制设计要求。在售灯芯模组的设计满足作为设施维护企业的常用备件、OEM生产企业的装配用组件要求,并完全符合国标GB/14887-2003以及其它国际标准, 通过了公安部CTSTC检查、国家量具CMA检测和国际CE认证;已被市场广泛使用。

Specifications
规格:

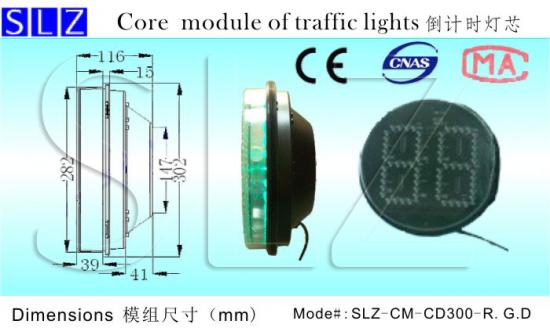

Module Size模组规格(mm):     Φ300
Housing壳料:                              GE UV-resistance Polycarbonate (PC)抗紫外线工程聚碳酸脂
Working voltage工作电压:           AC176V ~ 265V 60Hz/50Hz
IP level防护等级:                         IP53
Power consumption功耗:             Red countdown: ≤8W,
                                                                    Green countdown: ≤10W
Working environment环境温度:   -40°C ~ 80°C
Seeable distance可视距离:         ≥300M
Visual angle可视角度:                 30°
QTY of LED数量:                        Red: 64pcs per module
                                                                    Green:64pcs per module
Luminous intensity (IV)亮度:        Red: 3500~5000mcd,Green:7000~1000mcd
Dominant wavelength光波长度:   Red:625+/-5nm, Green: 505 +/-5nm
Certification检验证书:                  CE / CTSTC/CMA

Packing information包装数据:
Carton box dimensions包装箱尺寸(m):  1.24 *0.33*0.31 (K=k material)
QTY per each box装箱数量:                  10 modules
Gross weight毛重(kg):                           17.24
Net Weight净重(kg):                              13.6
Cube单箱体积 (m3):                             0.125

Order number and configurations订货号与配置:
SLZ-CM-CD300-R: Φ300mm Countdown timer signal color without lens, LED emission: RED 红色倒计时灯芯无透镜
SLZ-CM-CD300-G:  Φ300mm Countdown timer signal color without lens, LED emission: Green绿色倒计时灯芯无透镜
SLZ-CM-CD300-D: Φ300mm Countdown timer two-color without lens, LED emission: R&G红绿双色倒计时灯芯无透镜
