Products description产品描述:
SLZ-CM-Pe300 series, core module of pedestrian signal light, has varies configuration, including classic STATIC style, popular DYNAMIC style and, combine with COUNTDOWN functional style. Basically all of them haven’t lens. Belong to economic and hot sale products. But you could select differ items you want, it’s our pleasure to follow your customized design. In stock modules designed to requirements of replacement (spares) for maintenance purpose and OEM factories assembling, satisfied National standard GB/14887-2003 as well. It’s widely used in the world
SLZ-CM-Pe300系列的行人信号灯芯，有多种多样的配置方案，包含传统的静态型、流行的动态型、以及组合了行人倒计时的功能型。基本上，各种配置都不带透镜的配置；不带透镜的配置属于既经济又热销的推广型产品。但是，我们也很乐意由客户自己选择所需要的不同配置，也遵循客户的定制设计要求。在售灯芯模组的设计满足作为设施维护企业的常用备件、OEM生产企业的装配用组件要求，并完全符合国标GB/14887-2003以及其它国际标准，通过了公安部CTSTC检查和国际CE认证；已被市场广泛使用。Specifications规格:

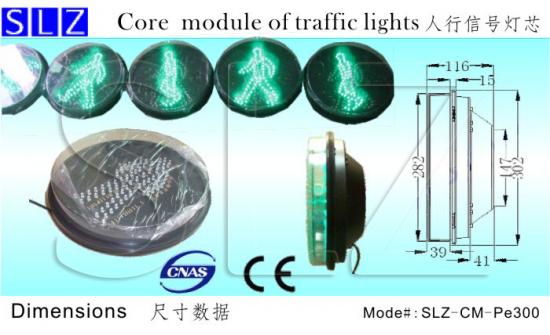

Module Size模组规格（mm）: Φ300
Housing壳料: GE UV-resistance Polycarbonate (PC)抗紫外线工程聚碳酸脂
Working voltage工作电压: AC176V ~ 265V 60Hz/50Hz
IP level防护等级: IP53
Power consumption功耗: Static style: ≤7W, Dynamic style:≤10W
Working environment环境温度: -40°C ~ 80°C
Seeable distance可视距离: ≥300M
Visual angle可视角度: 30°
QTY of LED数量: Red: 80pcs per module (Static style)静态红灯
Red: 80pcs + Green: 64pcs / module (Redman with countdown)红灯加倒计时
Green: 78pcs per module (static style)静态绿灯
Green: 129pcs per module (dynamic style)动态绿灯
Green: 78pcs per module (static style)静态绿灯
Green: 129pcs per module (dynamic style)动态绿灯
Luminous intensity (IV)亮度: Red: 3500~5000mcd, Green: 7000~1000mcd
Dominant wavelength光波长度: Red: 625, Green: 505 5nm
Certification检验证书: CE / CTSTC
Packing information包装数据:
Carton box dimensions包装箱尺寸(m): 1.24 *0.33*0.31 (K=k material)
QTY per each box装箱数量: 10 modules
Gross weight毛重(kg): 17.24
Net Weight净重(kg): 13.6
Cube单箱体积 (m3): 0.125
Order number and configurations订货号与配置:

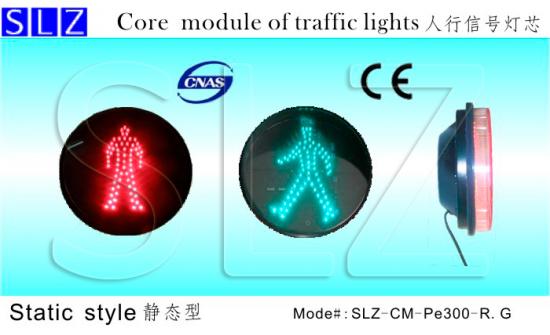

SLZ-CM-Pe300-R： Φ300mm static style pedestrian signal light without lens, LED emission: RED light
静态红色行人信号灯无透镜
SLZ-CM-Pe300-G: Φ300mm static style pedestrian signal light without lens, LED emission: Green light
静态绿色行人信号灯无透镜

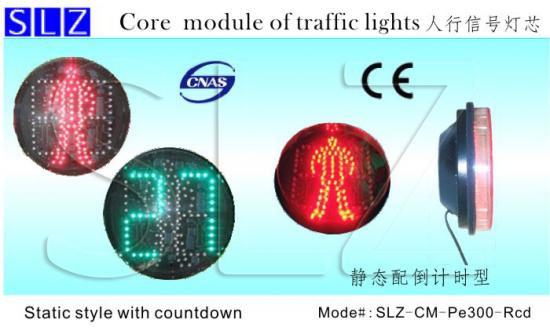

SLZ-CM-Pe300-Rcd: Φ300mm static style pedestrian signal light with green countdown timer. Without lens,
LED emission: Redman plus Green countdown light静态红色行人配绿色倒计时信号灯无透镜

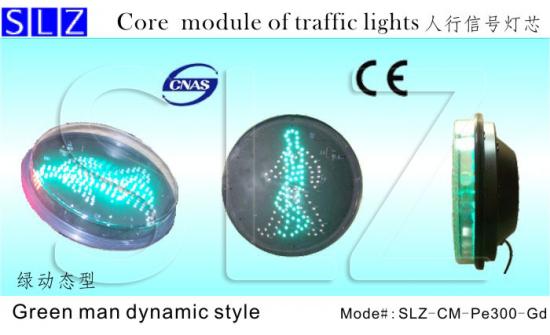

SLZ-CM-Pe300-Gd: Φ300mm dynamic style pedestrian signal light without lens, LED emission: Green light
绿色行人信号灯无透镜
