Φ300 full screen core module满屏灯芯

Products description产品描述:


    SLZ-CM-FS300-R.Y.G core module of traffic light, generally has two configurations, one fits double cobweb lens, enable that signal light has been well distributed. In the meantime, Lights appears more soft and confortable. Another one is without lens. Belong to economic style. Module designed to requirements of replacement (spares), OEM assembling, satisfied National standard GB/14887-2003 as well. It’s widely used in the world
     SLZ-CM-FS300-R.Y.G系列的信号灯芯,常规有两种配置方案,一种带有透镜,另外的一种就是不带透镜的配置;不带透镜的配置属于经济型方案。带透镜的方案可以使信号灯光分布更均匀,同时体现出更加的柔和舒适。灯芯模组的设计完全符合国标GB/14887-2003以及其它国际标准, 通过了公安部CTSTC检查和CE认证;已被市场广泛使用。

Specifications规格:

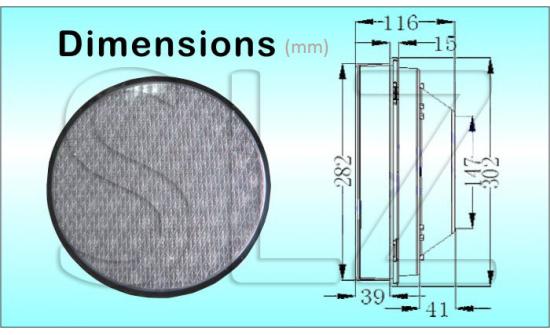

Module Size模组规格(mm):               Dia.300
Housing壳料:                                         GE UV-resistance Polycarbonate (PC)抗紫外线工程聚碳酸脂
Working voltage工作电压:                     AC176V ~ 265V 60Hz/50Hz
IP level防护等级:                                   IP53
Power consumption功耗:                      </= 9W
Working environment环境温度:            -40°C ~ 80°C
Seeable distance可视距离:                   ≥300M
Visual angle可视角度:                           30°
QTY of LED数量:                                  91pcs per module
Luminous intensity (IV)亮度:                 Red: 3500~5000mcd, Yellow:4000~6000mcd,Green:7000~1000mcd
Dominant wavelength光波长度:            Red:625+/-5nm           Yellow: 590+/-5nm,      Green: 505 +/- 5nm
Certification检验证书:                           CE / CTSTC

Packing information包装数据:
Carton box dimensions包装箱尺寸(m):  1.24 *0.33*0.31 (K=k material)
QTY per each box装箱数量:                  10 modules
Gross weight毛重(kg):                           17.24
Net Weight净重(kg):                              13.6
Cube单箱体积 (m3):                              0.12

Order number and configurations订货号与配置:

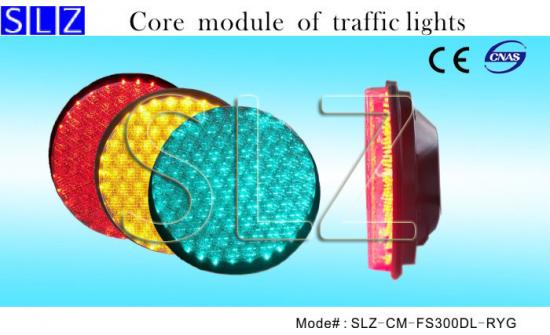

SLZ-CM-FS300DL-R   Dia.300mm with double cobweb lens, LED emission: RED light
SLZ-CM-FS300DL-Y   Dia.300mm with double cobweb lens, LED emission: Yellow light
SLZ-CM-FS300DL-G   Dia.300mm with double cobweb lens, LED emission: Green light

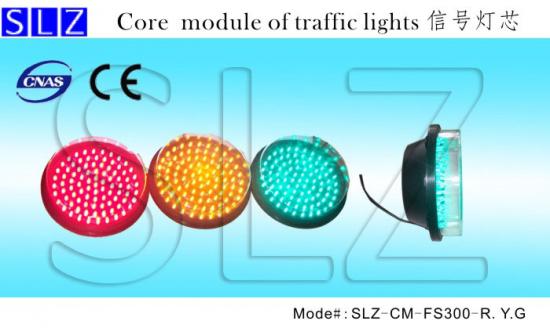

SLZ-CM-FS300-R        Dia.300mm without lens, LED emission: RED light
SLZ-CM-FS300-Y        Dia.300mm without lens, LED emission: Yellow light
SLZ-CM-FS300-G        Dia.300mm without lens, LED emission: Green light
