Φ200pedestrian core module行人信号灯芯


Products description
产品描述:

SLZ-CM-Pe200 series, core module of pedestrian signal light, have many different configurations, different scheme with different program of display and different quantity of Led. Details of each items, please refer to information thereinafter. Besides many typical characters we all known, remarkable SLZ-CM-Pe200 series has high-tech material apply to PCB, optimizing electric components. Even the wiring of circle board is much reliable. Although we have almost configurations but you could select differ items you want, it’s our pleasure to follow your customized design. In stock modules designed to requirements of replacement (spares) for maintenance purpose and OEM factories assembling, satisfied National standard GB/14887-2003 as well. It’s widely used in the world
SLZ-CM-Pe200系列的行人交通信号灯芯,有多种不同配置方案,不同的方案有不同的显示方式以及不同的LED发光体数量。详细的资料请参照以下部分;除了我们大家都熟知的、直径200毫米信号灯特点外,值得注意的是,SLZ-CM-Pe200 系列的灯芯,采用了很多高科技的材料与工艺的优化,例如,关键的PCB板材料、关键的元器件、电路板的线路可靠性设计等。尽管我们已经有了常规的各种配置方案,但是,我们也很乐意由客户自己选择所需要的不同配置,也遵循客户的定制设计要求。在售灯芯模组的设计满足作为设施维护企业的常用备件、OEM生产企业的装配用组件要求,并完全符合国标GB/14887-2003以及其它国际标准, 通过了公安部CTSTC检查和国际CE认证;已被市场广泛使用。

Specifications规格:

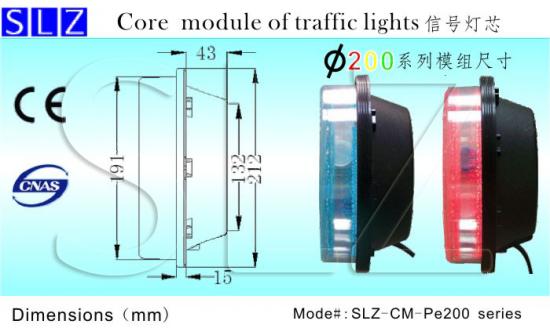

Module Size模组规格(mm):         Φ200
Housing壳料:                                      GE UV-resistance Polycarbonate (PC)抗紫外线工程聚碳酸脂
Working voltage工作电压:                 AC85V ~ 265V 60Hz/50Hz
IP level防护等级:                                 IP53
Power consumption功耗:                Static style, Red:  ≤7W,       Green: ≤8W
                                                              Dynamic style, Green man dynamic: ≤9W;       Green man running: ≤7W
                                                              Combined style,  Red man≤10W;  Green man ≤13W ;  White man≤8W,     Countdown≤8W
Working environment环境温度:       -40°C ~ 80°C
Seeable distance可视距离:              ≥300M
Visual angle可视角度:                        30°
QTY of LED数量:                                Static style, Red:  66pcs,      Green: 63pcs
                                                              Dynamic style, Green man dynamic: 96pcs,        Green man running: 314pcs
                                                              Combined style, Red man:92pcs,       Green man:131pcs,      White man69pcs,      Countdown56pcs
Luminous intensity (IV)亮度:           Red: 3500~5000mcd; Yellow: 4000~6000mcd; Green: 7000~1000mcd
Dominant wavelength光波长度:      Red: 625+/-5, Yellow: 590+/-5nm; Green: 505 +/-5nm
Certification检验证书:                        CE / CTSTC

Packing information包装数据:
Carton box dimensions包装箱尺寸(m):  1.04 *0.25*0.25 (K=k type)
QTY per each box装箱数量:                       10 modules
Gross weight毛重(kg):                                8.6
Net Weight净重(kg):                                    6.6
Cube单箱体积 (m3):                                  0.12

Order number and configurations订货号与配置:

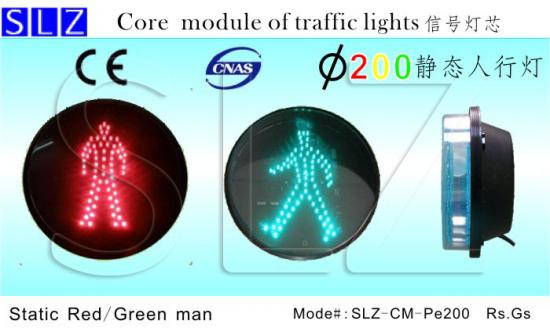

SLZ-CM-Pe200 -Rs:  Φ200mm pedestrian signal light core module , RED light, static style 红色静态人行灯芯
SLZ-CM-Pe200 -Gs:  Φ200mm pedestrian signal light core module Green light static style绿色静态人行灯芯

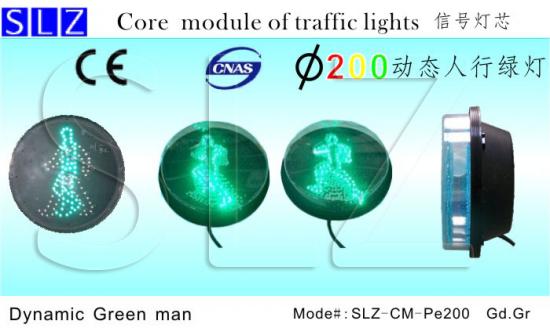

SLZ-CM-Pe200-Gd:     Φ200mm pedestrian signal light core module: Green light dynamic style绿色动态人行灯芯
SLZ-CM-Pe200-Gr:         Φ200mm pedestrian signal light core module: Green light Running style 绿色跑动行人灯芯
SLZ-CM-Pe200-Rycd:    Φ200mm pedestrian signal light core module: Red light plus yellow countdown红灯加黄倒计时灯芯
SLZ-CM-Pe200-Rgcd:    Φ200mm pedestrian signal light core module: Red light plus green countdown红灯加绿倒计时灯芯
SLZ-CM-Pe200-Gycd:     Φ200mm pedestrian signal light core module: Green light plus yellow countdown绿灯加黄倒计时灯芯
SLZ-CM-Pe200-Wycd:    Φ200mm pedestrian signal light core module: White light plus yellow countdown白灯加黄倒计时灯芯
